frps-multiuser

README | 中文文档

frp server plugin to support multiple users for frp.

frps-multiuser will run as one single process and accept HTTP requests from frps.

Update Notes

• the default tokens file is frps-multiuser.ini now,ini file support comment
• remove -l,it configure in frps-multiuser.ini now
• change -f to -c,the same as frps
• if [users] section is empty,the authentication will only be handle by frps
• if user under [disabled] section ,and the value is disable, it means that user is be disabled, and can not connect to server

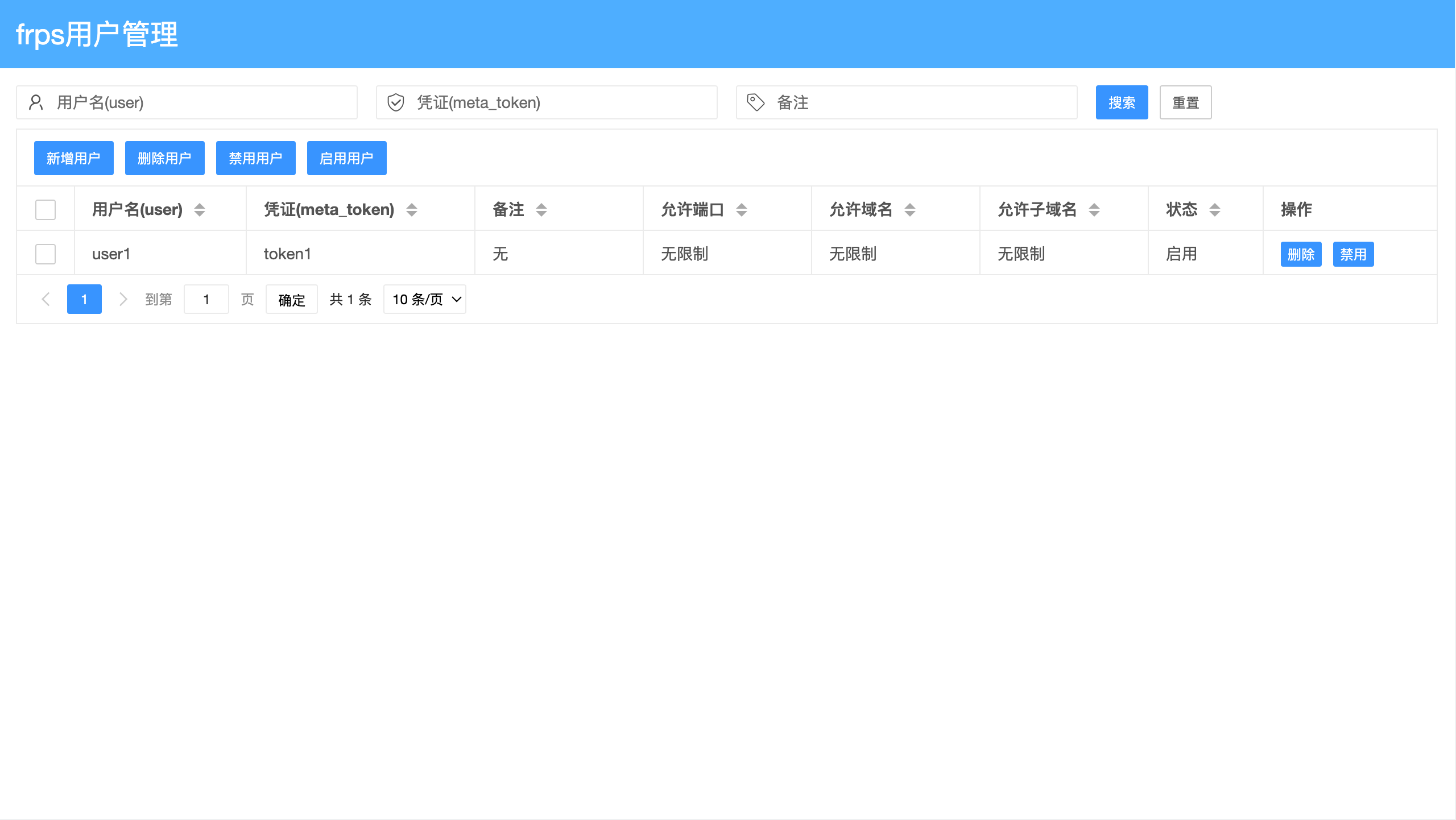

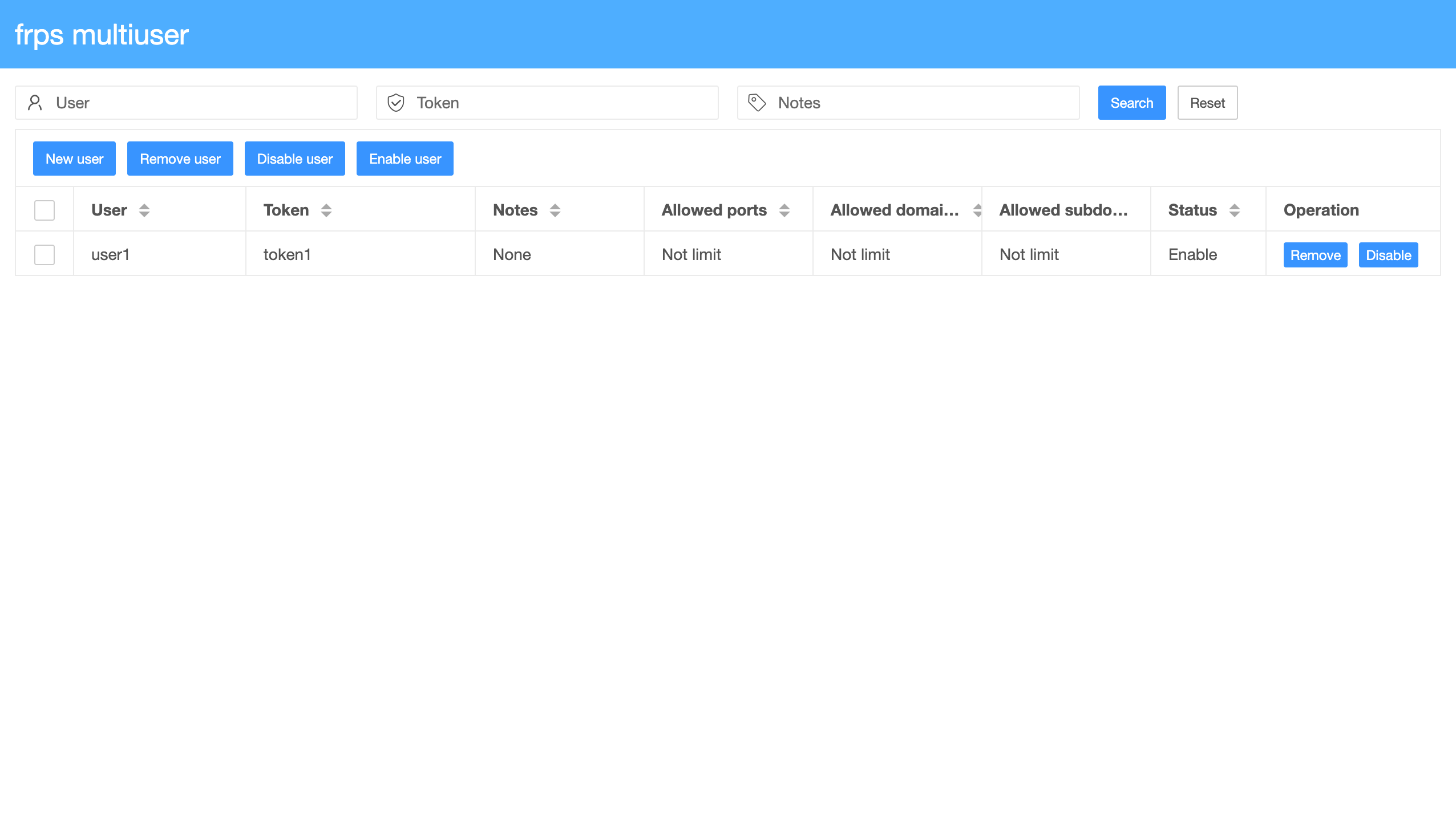

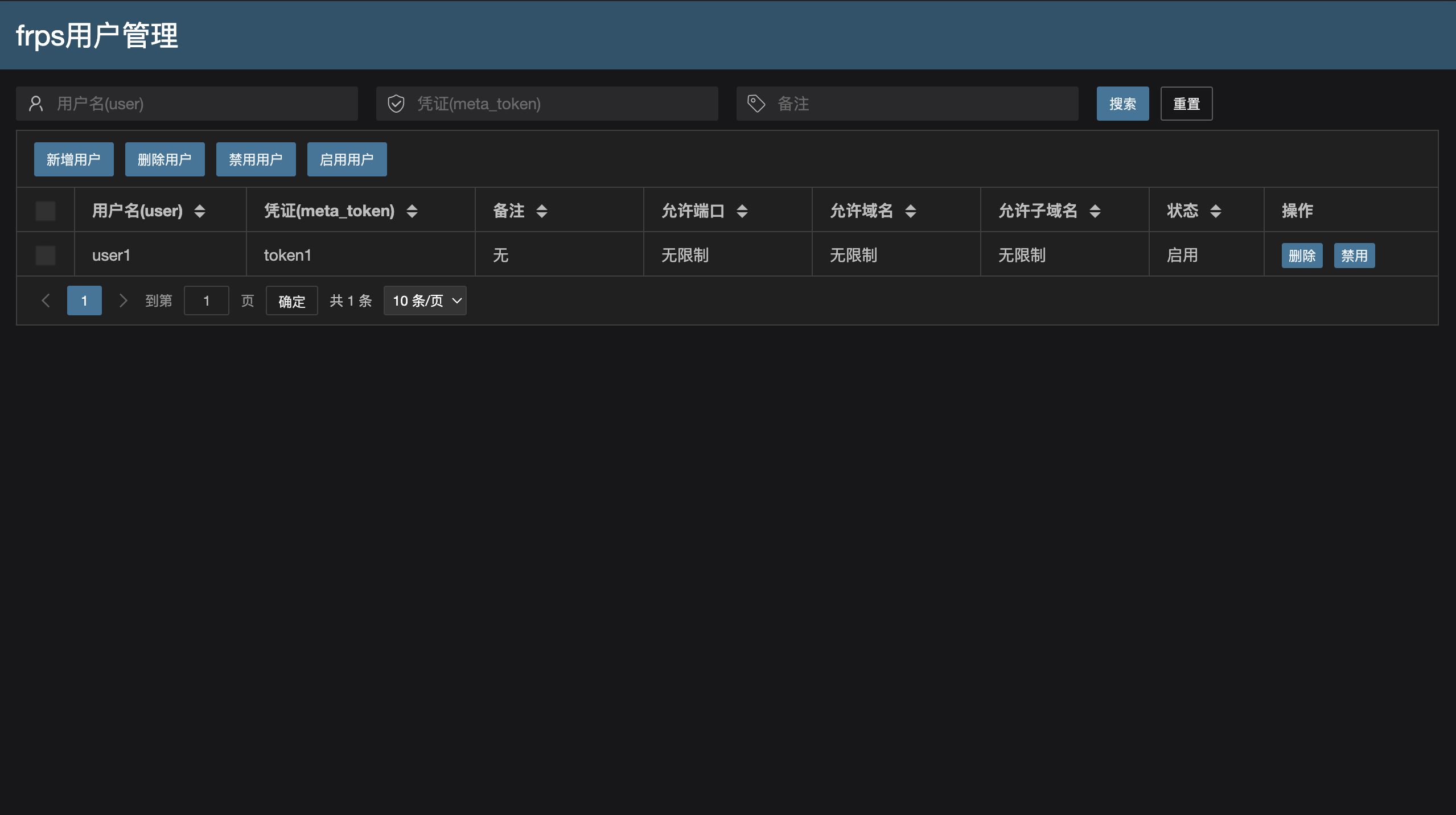

• add a manage ui, and change color mode base on browser

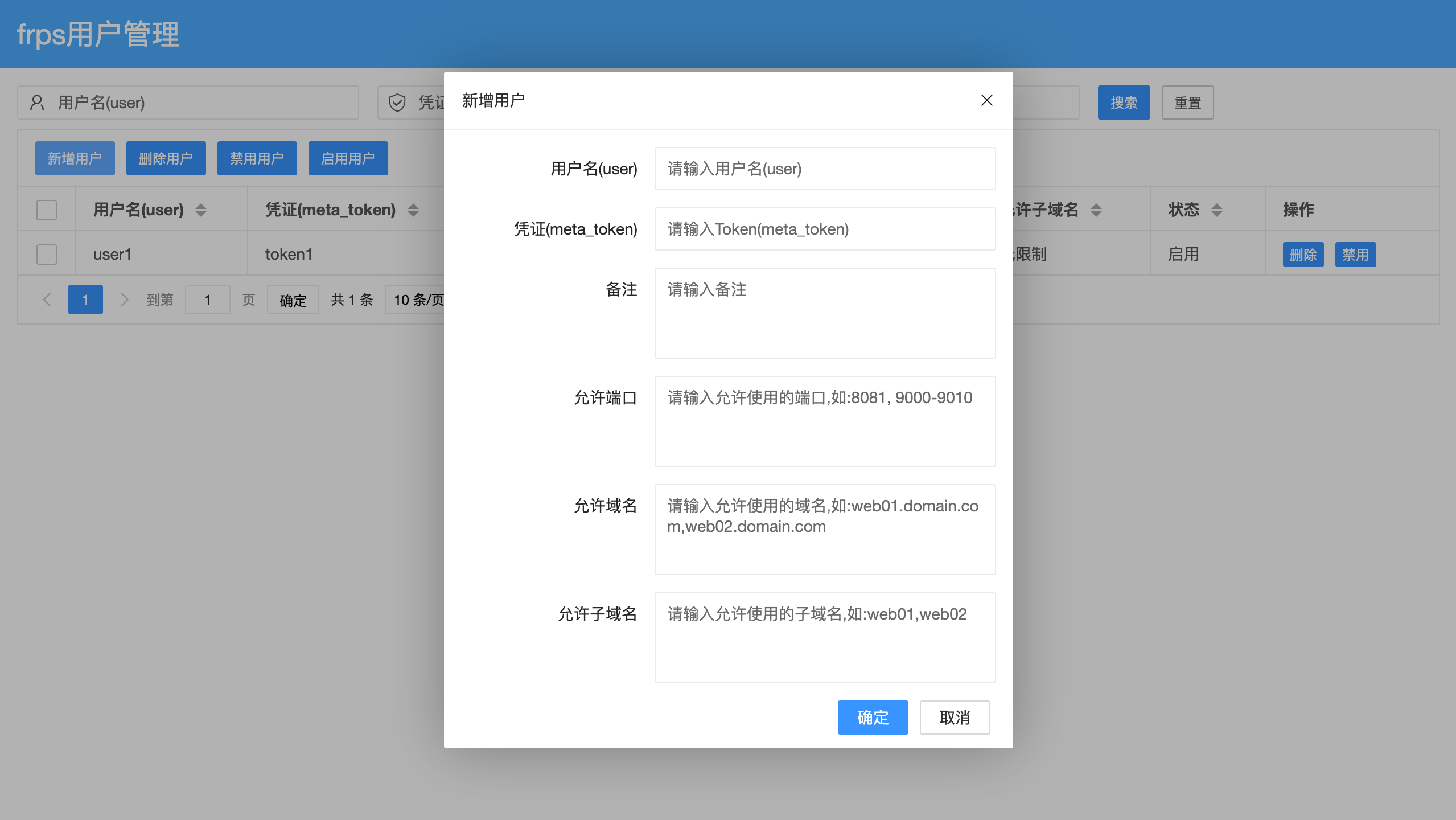

• you can dynamic add,remove,disable or enable user now
• you can limit ports,domains and subdomains for each user now

when a user is dynamic been remove or disable,it will take some time to be effective

the limit of ports、domains、subdomains only effective at NewProxy

Features

• Support multiple user authentication by tokens saved in file.
• Support dynamic add,remove,disable or enable user
• Limit ports,domains and subdomains for each user

Download

Download frps-multiuser binary file from Release.

Requirements

frp version >= v0.31.0

Usage

1. Create file frps-multiuser.ini including all support usernames and tokens.

[common]
;plugin listen ip
plugin_addr = 127.0.0.1
;plugin listen port
plugin_port = 7200
;the username of manage ui,optional
admin_user  = admin
;the password of manage ui,optional
admin_pwd   = admin

[users]
;user user1 with meta_token 123
user1 = 123
;user user2 with meta_token abc
user2 = abc

[ports]
;user1 can only use ports 8080,9090 to 9010 ,other ports will fail to create proxy (frpc can normally startup)
user1=8080,9090-9010

[domains]
;user1 can only use domain web01.user1.com ,other domain will fail to create proxy (frpc can normally startup)
user1=web01.user1.com

[subdomains]
;user1 can only use subdomain web01 ,other subdomain will fail to create proxy (frpc can normally startup)
user1=web01

[disabled]
;user2 is disabled,when frpc use this user to connect with frps,if frpc is not startup,it cannot startup,if it's already startup,it will always show error logs on console
user2 = disable

One user each line. Username and token are split by =.

2. Run frps-multiuser:

   ./frps-multiuser -c ./frps-multiuser.ini

3. Register plugin in frps.

# frps.ini
[common]
bind_port = 7000

[plugin.multiuser]
addr = 127.0.0.1:7200
path = /handler
ops = Login,NewWorkConn,NewUserConn,NewProxy,Ping

4. Specify username and meta_token in frpc configure file.

   For user1:

# frpc.ini
[common]
server_addr = x.x.x.x
server_port = 7000
user = user1
meta_token = 123

[ssh]
type = tcp
local_port = 22
remote_port = 8080

For user2:(user2 cannot connect to server,because it is disabled)

# frpc.ini
[common]
server_addr = x.x.x.x
server_port = 7000
user = user2
meta_token = abc

[ssh]
type = tcp
local_port = 22
remote_port = 6000

Run as service

this example is for ubuntu and with root user

• 1.unzip frps-multiuser.zip to dir /root/frps-multiuser
• 2.touch a file with command touch frps-multiuser.service in dir /root/frps-multiuser.the file content is:

[Unit]
Description = frp multiuser service
After = network.target syslog.target
Wants = network.target

[Service]
Type = simple
# config of frps-multiuser.ini,you should change the file path
Environment=FRPS_MULTIUSER_OPTS="-c /root/frps-multiuser/frps-multiuser.ini"
# command of run frps-multiuser,you should change the file path
ExecStart = /root/frps-multiuser/frps-multiuser $FRPS_MULTIUSER_OPTS

[Install]
WantedBy = multi-user.target

• 3.copy frps-multiuser.service to /etc/systemd/system/ with command cp /root/frps-multiuser.service /etc/systemd/system/
• 4.reload service with command systemctl daemon-reload
• 5.start service with command service frps-multiuser start

Issues & Ideas

If you want visit mange ui from internet, you should change plugin_addr to 0.0.0.0

If you have any issues or ideas, put it on issues. I will try my best to achieve it.

Credits

• frp
• fp-multiuser
• layui
• layui-theme-dark
